Power source – Red

Name: Power source - Red | Carpe Iter
Brand: Carpe Iter
SKU: 11202014
Price: 27.72 USD
Availability: InStock

Continuous 12V-to-5V / 3A Step-Down Power Supply for CI Pad

Direct battery power converter engineered to deliver unthrottled, continuous 5V/3A power to the CI Pad regardless of motorcycle ignition state or charging system voltage fluctuations.

The “RED” Always ON power supply bypasses smart voltage thresholds completely, feeding steady 5V DC current straight from your 12V battery. Ideal for rally racers, long-distance navigators, and electrical systems that dip below 13.1V where auto-switching units cut out. If you prefer automatic shut-off to prevent battery drain when parked, grab the Black Auto-Switching Power Source instead.

Hardware & Electrical Specs:

Direct Continuous Feed: Stays active 24/7 once wired to power. Perfect for switched auxiliary fuse blocks, rally distribution boxes, or battery tenders.
Dedicated CI Pad Charging: Feeds into our Lightweight Holder (Active or Passive) via the sealed M8 charging lead.
High Output: 12V DC input converted to a regulated 5V / 3A (15W) output to keep your tablet charged even under full screen brightness and high ambient heat.
Potted Waterproof Housing: Fully resin-sealed electronics built to withstand relentless pressure washing, trail mud, and severe engine vibration.

[ APPLICATION_DATA // POWER MANAGEMENT ]
CI PAD POWER CONVERTER

Continuous 12V-to-5V/3A Power Supply for CI Pad Active Holders.

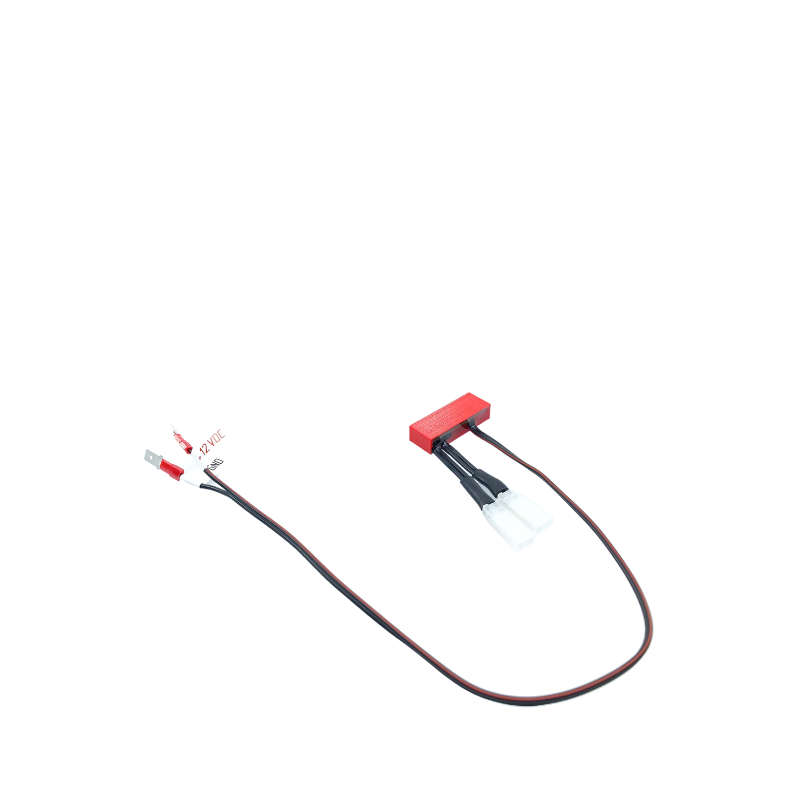

The Power Source 12-5V/3A Always ON (RED) v2 is an alternative regulated step-down converter engineered specifically for CI Pad v1, v3, v4, and v4b active holders. Unlike standard auto-sensing power modules, this unit is always active and continuously draws and steps down voltage from the vehicle electrical system without requiring an automated turn-on voltage threshold.

Standard Carpe Iter auto-switching power supplies require charging circuit voltage to remain consistently above 13.5V under load to stay engaged. On certain motorcycles—particularly lightweight enduros, dual-sports with low-wattage stators, or bikes running heated gear and auxiliary lights—system voltage can dip below 13.5V at idle or low RPMs, causing the tablet to repeatedly start and stop charging. The Always ON (RED) v2 converter bypasses this limitation entirely, providing continuous, uninterrupted 5V charging current whenever power is supplied to its input.

ELECTRICAL CHARACTERISTICS & WIRING INTEGRATION

■
Uninterrupted 5V/3A Output: Delivers full regulated 3A output to keep the CI Pad battery charging steadily under maximum display brightness and processor load.
■
Input Cable Dimensions: Features a single 12V DC input lead measuring 39 cm (15″) for routing to vehicle power.
■
Dual 5V Output Leads: Equipped with two 5V DC output leads measuring 5 cm (2″) terminated for direct integration into Carpe Iter active holder pogo-pin arrays.

CRITICAL WIRING & PARASITIC DRAIN WARNING

* Do NOT Wire Directly to Unswitched Battery Terminals: Because this converter has no auto-shutoff threshold, connecting it directly to the motorcycle battery will cause a constant parasitic drain. If left connected while charging a CI Pad with the engine stopped, it can completely deplete the motorcycle battery within a few hours.
* Keyed Ignition Installation: You must connect this converter to an ignition-switched auxiliary power circuit (ACC line, auxiliary power port, or relay). Ensure the target auxiliary circuit supports the converter’s current draw (consult your motorcycle service manual for circuit ratings).
* For complete electrical setup procedures, review the Connecting Holder to Power Source Manual.

TYPE: CONTINUOUS 12V->5V/3A CONVERTER
VALIDATION: CARPE ITER CERTIFIED

[ PHYSICAL_PARAMETERS // SPECS ]
ELECTRICAL COMPONENT

Product Function	Step-down DC-DC voltage regulator (continuous Always-ON profile)
Input Voltage	12V DC nominal vehicle electrical supply
Output Parameters	5V DC / 3A regulated continuous charging output
Switching Threshold	None (Always ON; bypasses the 13.5V automatic threshold cutoff)
Input Cable Length	1× 12V input lead: 39 cm / 15 inches
Output Cable Length	2× 5V output leads: 5 cm / 2 inches
Cradle Compatibility	Carpe Iter active holders for CI Pad v1, v3, v4, and v4b
Weather Protection	Fully potted and weather-sealed electronic enclosure for severe off-road use
