€48,70 excl. VAT

Short Bracket for Caretta – 12mm

Name: Short Bracket for Caretta - 12mm | Carpe Iter
Brand: Carpe Iter
SKU: 4324
Price: 48.70 EUR
Availability: InStock

12 mm Crossbar Short Bracket for Caretta Cradle (CNC Aluminum)

Precision CNC-machined aluminum mounting bracket engineered specifically to provide a rigid, adjustable cockpit perch for the Caretta Cradle on 12 mm GPS bars.

Developed specifically to mount the Caretta Cradle onto 12 mm round crossbars and rally towers. Its compact geometry creates a sturdy, vibration-free platform that allows riders to position the navigation screen in the optimal sightline without cockpit interference.

Hardware & Fitment Details:

Shaft Clamping: Engineered specifically for 12 mm round bar navigation stays and GPS crossbars.
Cradle Optimization: Tailored directly to fit the Caretta Cradle footprint and hardware specs.
Rugged CNC Build: High-strength billet aluminum construction built to survive relentless off-road pounding.
Need CI Pad Fitment? Looking for the CI Pad version? Check the Short Bracket 12mm for CI Pad.

[ APPLICATION_DATA // SYSTEM MOUNTING ]

CARPE ITER OEM

The Short Bracket 12mm for Caretta is a dedicated CNC-machined aluminum mounting bracket engineered to clamp the Carpe Iter Caretta cradle directly onto standard 12 mm motorcycle navigation crossbars, windshield support rails, and rally towers.

Designed for compact cockpits where minimal standoff distance is critical, this low-profile clamp creates a rock-solid, rigid mounting platform with virtually zero lever-arm flex. It allows you to mount your Caretta cradle centrally within your field of view while keeping the display tucked tightly behind windscreen protection.

KEY FEATURES

■Dedicated 12mm Clamping: Precision-bored for 12 mm cylindrical cockpit accessory crossbars, windscreen support arches, and tower rails.
■CNC Machined Billet Aluminum: High-tensile alloy construction engineered to withstand extreme off-road shock without warping or shifting.
■Ultra-Low Profile Standoff: Eliminates unwanted leverage on thin crossbars to minimize harmonic vibration and display bounce on rough terrain.

CROSSBAR INSTALLATION & TORQUE NOTE

Ensure the 12 mm crossbar surface is clean, degreased, and smooth. Tighten clamp screws evenly on both sides to avoid pinch loading. Always apply medium-strength threadlocker (Loctite 243) to clamp and cradle fasteners to eliminate vibration-induced loosening during long off-road tracks.

DISCIPLINE: COCKPIT MOUNTING

VALIDATION: CARPE ITER CERTIFIED

[ PHYSICAL_PARAMETERS // SPECS ]
OEM HARDWARE

Hardware Type	Compact crossbar mounting clamp bracket
Clamp Diameter	12 mm (standard navigation crossbar & tower round rail)
Cradle Compatibility	Carpe Iter Caretta Cradle rear mounting interface
Material & Finish	CNC-machined aerospace-grade aluminum alloy, black anodized

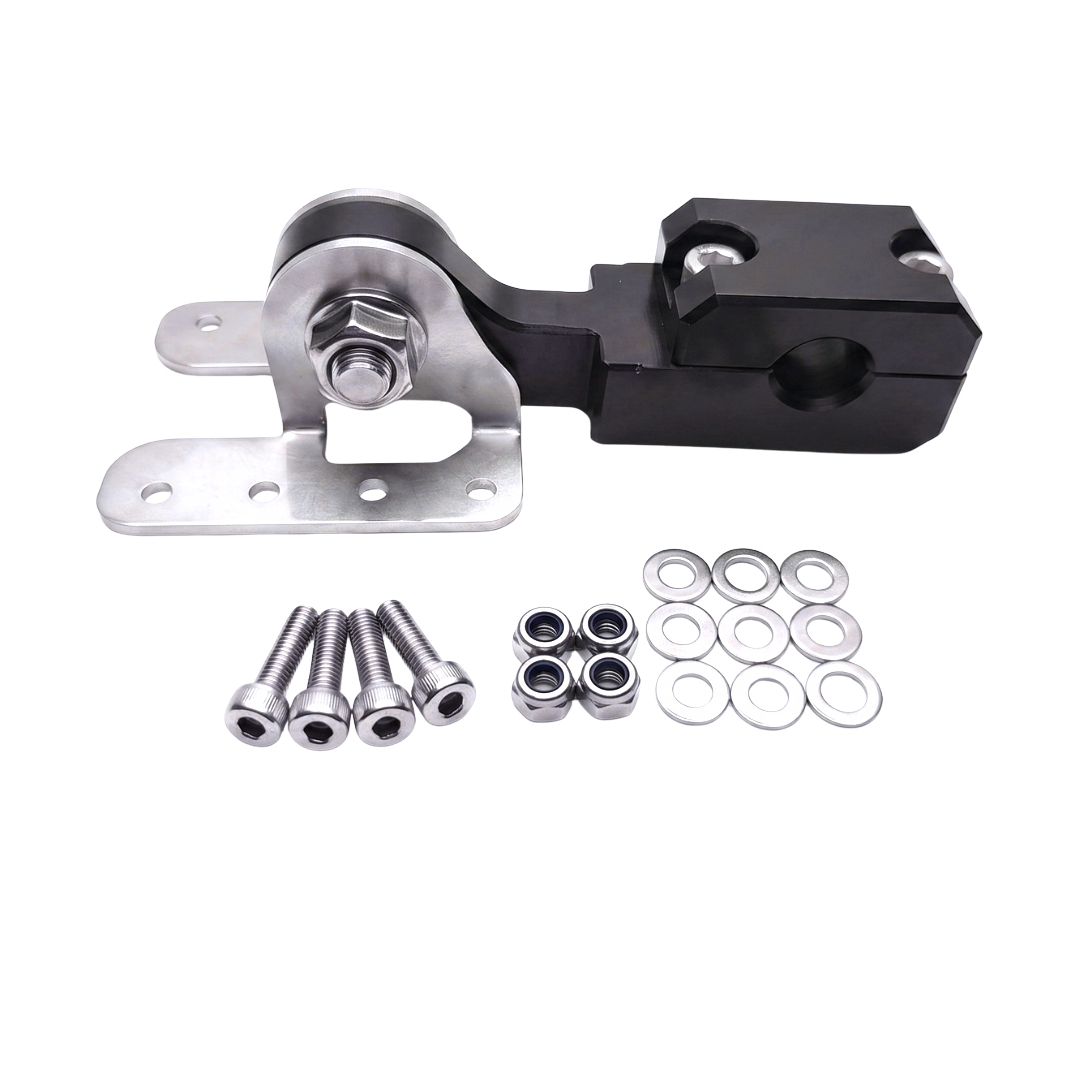

Fastener Hardware	High-tensile stainless steel clamp and cradle mounting bolts included

CLAMP BORE: 12 MM CROSSBAR
VALIDATION: CARPE ITER CERTIFIED
