$51.75 excl. VAT

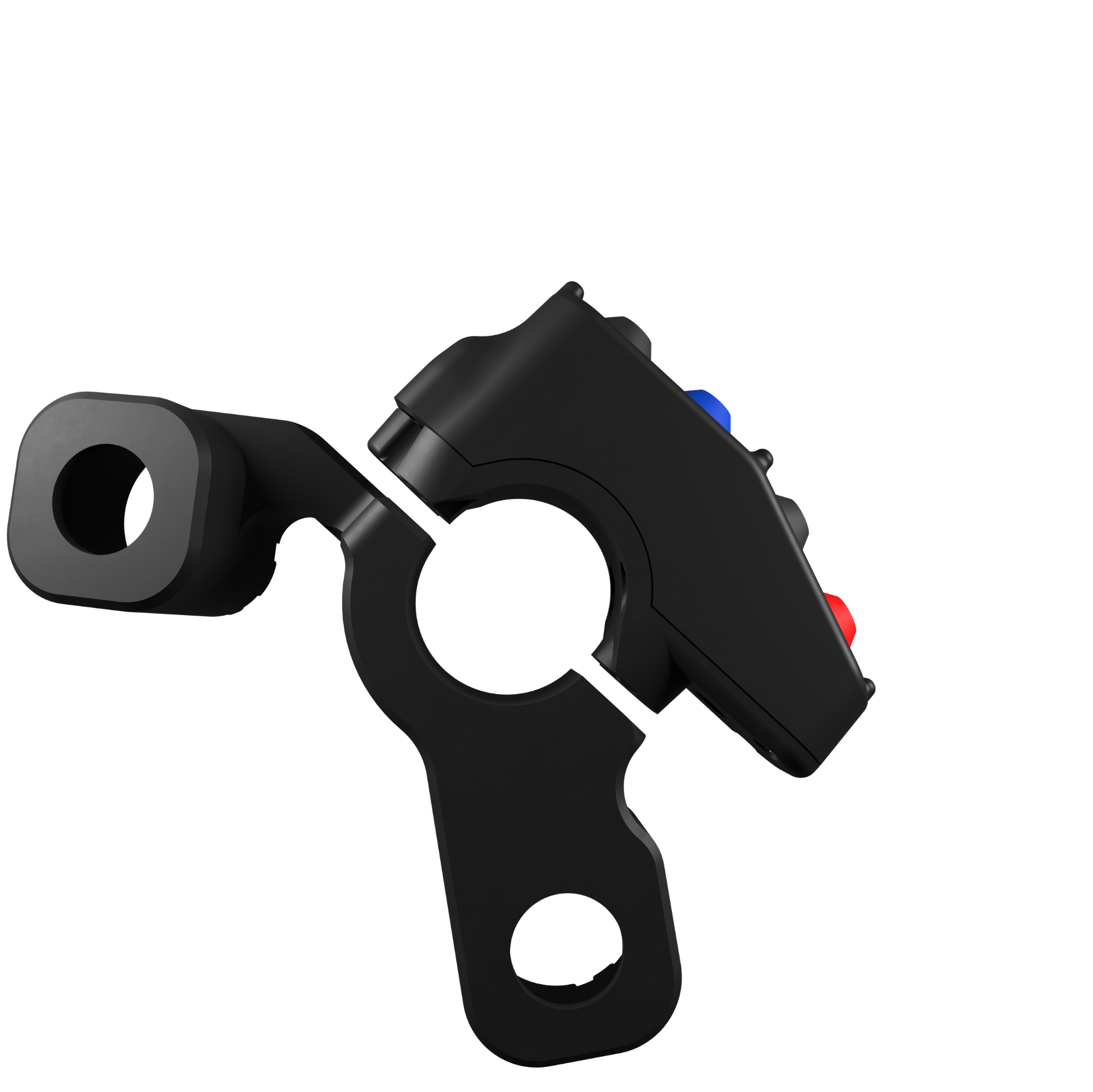

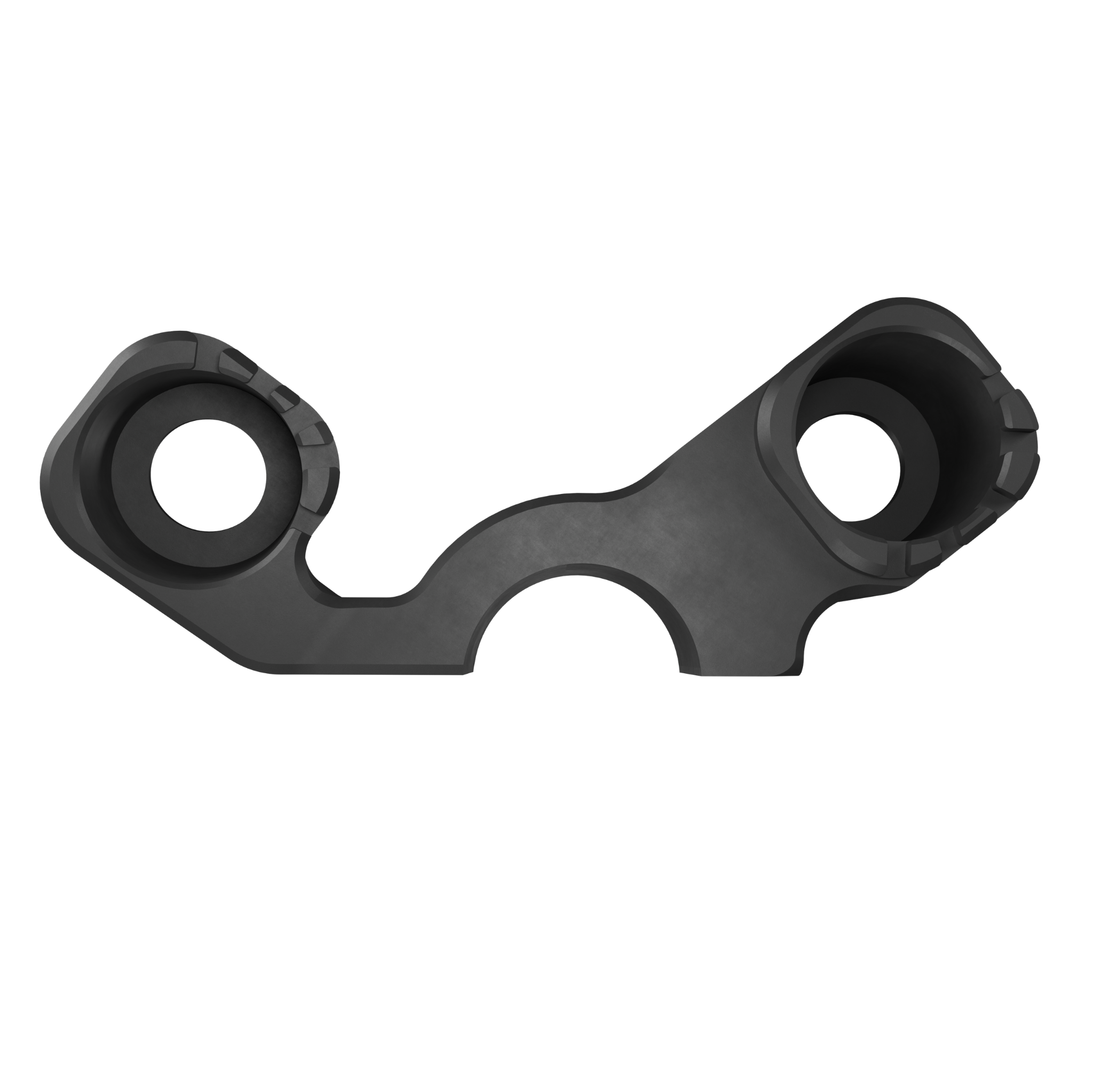

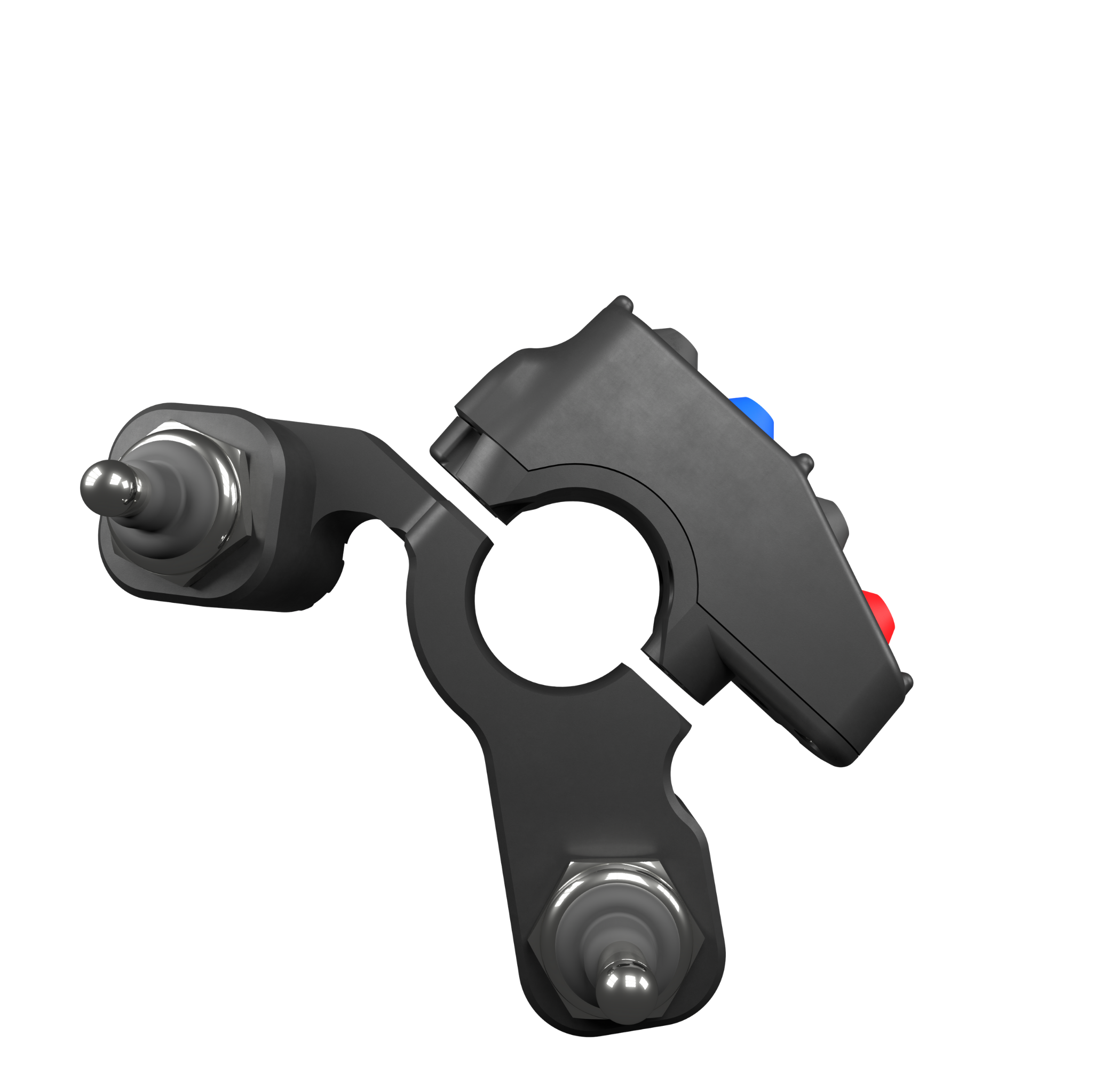

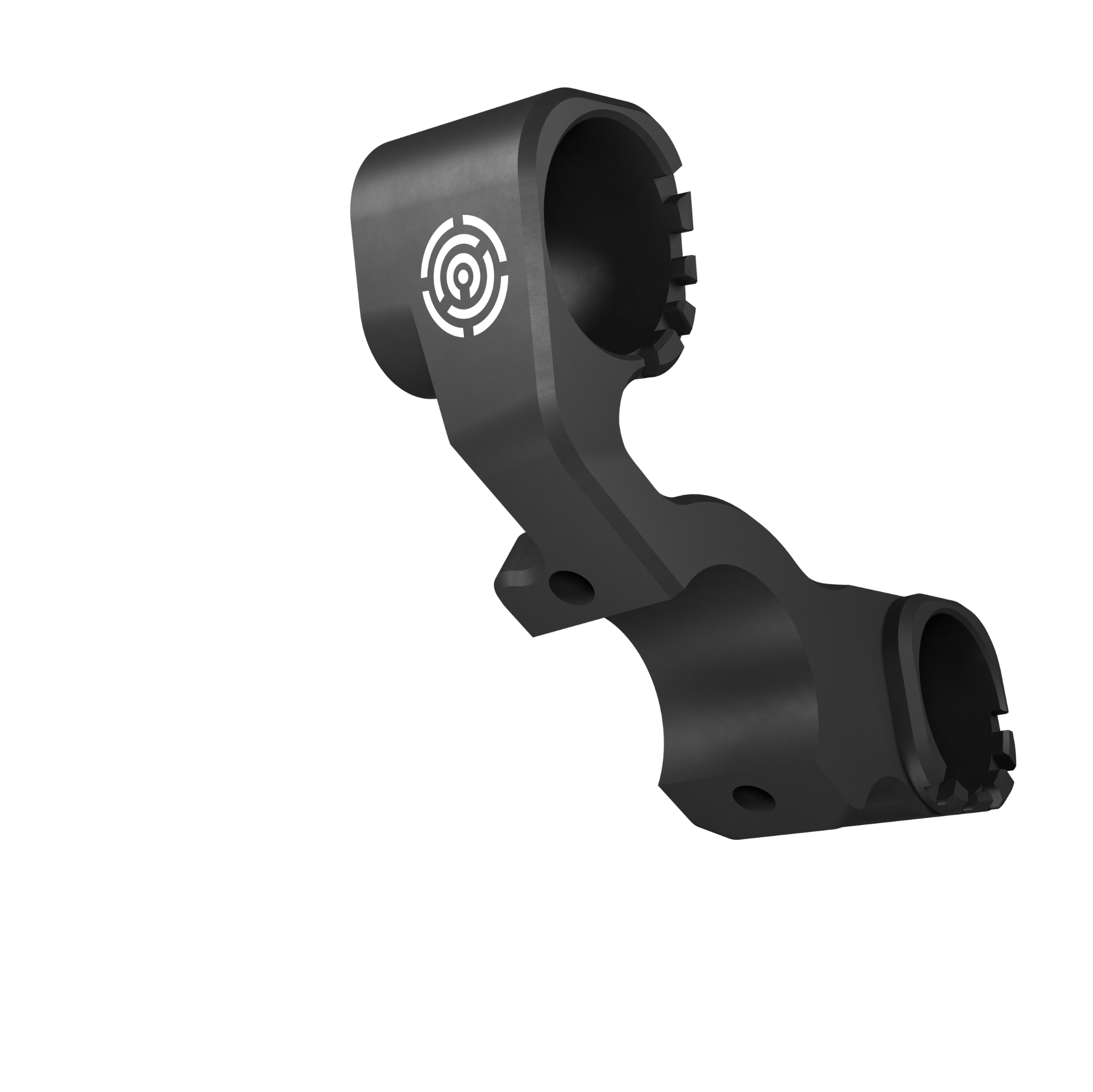

Terrain Command Toggle Bracket – Dual B

Terrain Command Toggle Bracket – Ergonomic Handlebar Mount

Ergonomic handlebar bracket engineered to mount the Terrain Command Toggle Switch seamlessly alongside your Terrain Command III Nylon Buttons.

Our modular toggle bracket series allows riders to customize the exact position and reach of their navigation toggles. Manufactured from CNC-machined and hard-anodized aluminum, it lets you adjust the toggle angle independently from your push-button pod without adding bulky switchgear to crowded bars.

Bracket Specifications:

  • Bracket Configuration: Type Dual B – dual-toggle setup for both index finger and thumb control. Designed primarily for adventure enduros (such as KTM 790/890/1290) with large stock handlebar controls.
  • Ultra-Slim Profile: Keeps switchgear within natural reach while preserving space for factory perches and handguard mounts.
  • Hardware Prerequisite: Must be combined with Terrain Command III Nylon Buttons. Dual toggles require a Toggle Adapter for Terrain Command.
  • Switch Compatibility: Precision-fit for the Short or Long Terrain Command Toggle Switch.

In stock (can be backordered)

[ APPLICATION_DATA // MODULAR COCKPIT MOUNTING ]
TERRAIN COMMAND SYSTEM

Ergonomic Handlebar Mounting Brackets for Carpe Iter Toggle Switches.

These specialized mounting brackets integrate the Terrain Command Toggle Switch into your cockpit with millimetric precision. Designed specifically to work alongside the Terrain Command III or standalone handlebar switch clusters, they position roadbook and tripmaster controls exactly where your fingers naturally rest.

Manufactured from high-strength, impact-resistant composite material to withstand severe vibration, direct branch impacts, and competition roost while adding negligible weight to the controls.

SYSTEM GEOMETRY & ACTUATION STYLES
  • ■
    Thumb vs. Index Actuation: Thumb brackets orient the toggle switch downward/inward for direct sweep actuation with the left thumb while gripping the bar. Index brackets tuck the toggle forward, enabling instantaneous trigger actuation with the index finger without altering your thumb grip.
  • ■
    Orientation Type A vs. Type B: Allows you to clear varying OEM handlebar components (clutch master cylinders, handguard mounts, mirror perches, and factory switch cubes). Type A and Type B provide mirrored angular offsets to clear tight clearances on either side of the handlebar clamp.
  • ■
    Dual / Combined Setups: Allows riders to stack both a thumb toggle and an index toggle simultaneously on the same side of the cockpit, dedicating one switch to Tripmaster distance +/- and the second to digital roadbook scrolling.

MODULAR SELECTION NOTICE
* This bracket is a dedicated modular mounting component. To complete the assembly, ensure you have the appropriate Toggle Switch mechanism (12 mm or 18 mm) and handlebar clamp.
* Fully compatible with standard 22 mm (7/8″) and 28 mm fatbar cockpit mounting locations.
SERIES: TERRAIN COMMAND MODULAR BRACKET
VALIDATION: CARPE ITER CERTIFIED

[ PHYSICAL_PARAMETERS // SPECS ]
MOUNTING HARDWARE
Component TypeModular handlebar mounting bracket for toggle switch mechanisms
Actuation PlacementThumb (inward/downward) or Index Finger (forward trigger)
Offset GeometryType A / Type B angular offsets to clear master cylinders & perches
Material BuildReinforced technical composite (high impact resistance, UV stable)
Switch CompatibilityCarpe Iter Toggle Switch units (12 mm short and 18 mm long levers)
System CompatibilityTerrain Command III, Terrain Command HUB, Rally Tripmaster HUB
TYPE: TECHNICAL COMPOSITE // MODULAR MOUNT
VALIDATION: CARPE ITER CERTIFIED
